Kitchen Renovation: The Value of Professional Drafting

PLAN DETAIL AT CAT FEEDING SECTION AT QUATZ LEEDGS COUNTER EDGE W/ BRACKET

STATION AND OPEN SHELF CABINET DETAIL

ELECTRICAL OUTLET IN TALL QUARTZ TO WD CABINET MATERIAL TRANSITION AT

CABINET DETAIL  TRANSITION DETAIL CABINATE BASE

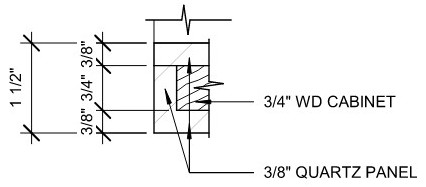

QUARTZ EDGE DETAIL QUARTZ TO WD CABINET QUARTZ TO WD CABINET TRANSITION DETAIL TRANSITION DETAIL

Interior Details:

The interior details cover a lot of things from material transition between cabinets and walls or termination details or any special support details. The scale of the details range from 3" = 1'-0" to 6" = 1'-0". Again the details show the intent of the design and it is up to the millwork subcontractor to construct it, however in all cases the contractor shall seek the design consultant approval.
